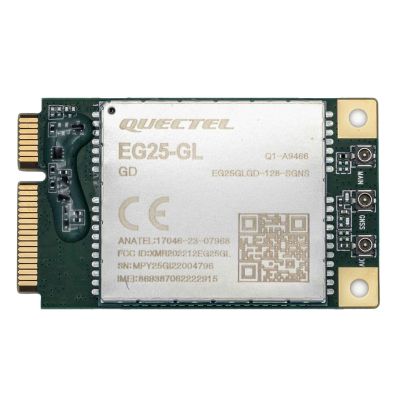

EG25-GL Mini PCIe
Quectel EG25-GL Mini PCIe LTE Cat 4 module delivers 150Mbps downlink, 50Mbps uplink, with multi-band support, GNSS, and broad IoT compatibility in a compact form.
US/Canada
We only offer IC Certified products. For international products, contact us.
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Description
The Quectel EG25-GL Mini PCIe LTE Category 4 module offers high-speed connectivity with 150Mbps downlink and 50Mbps uplink rates.
This versatile module, compliant with 3GPP Release 11, supports multiple LTE bands and is backward compatible with EDGE and GSM/GPRS networks.
It features GNSS support for accurate positioning, a wide range of internet protocols, and interfaces for easy integration into IoT applications like industrial routers, PDAs, rugged tablets, and digital signage.
Operating within -35°C to +75°C, it ensures reliable performance in varied environments.
Data sheet
- Product code
- EG25-GL
- Dimensions
- 30.0 × 51.0 × 4.9
- Operating Temperature
- -40C to +65C
- LTE data rate (Mbps)
- LTE-FDD: Max. 150 (DL)/Max. 50 (UL) * LTE-TDD: Max. 130 (DL)/Max. 30 (UL)
- Antenna
- Pads for Primary, Rx-diversity, and GNSS
- Protocols
- TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS*/FTPS*/SMTPS/SSL/FILE
- LTE Category
- 4
- LTE FDD bands
- B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
- LTE TDD bands
- B34/38/39/40/41
- Antenna header count
- 2
- Weight
- 9.8 (EG25-G Mini PCIe)
- Power Rating
- 3.3 V
- Certification
- SRRC/NAL/CCC/GCF/CE/FCC/PTCRB/IC/Anatel/IFETEL/KC/NCC/JATE/TELEC/RCM/NBTC/ICASA/IMDA
- DC-HSPA+ data rate (Mbps)
- Max. 42 (DL)/Max. 5.76 (UL
- WCDMA data rate (Kbps)
- Max. 384 (DL)/Max. 384 (UL)
- EDGE data rate (Kbps)
- Max. 296 (DL)/Max. 236.8 (UL)
- GPRS data rate (Kbps)
- Max. 107 (DL)/Max. 85.6 (UL)
- (U)SIM
- 1.8 V/3.0 V
- UART
- × 1 (EG25-G Mini PCIe)
